Washability

Washability Tester for Paints

Scrubtek NK-WT2300

Dry or wet abrasion testing to determine the resistance of paints or coatings

The Scrubtek NK-WT2300 is the washability and rubbing tester developed by NK to assess the resistance of paints, varnishes and coatings to scratching, wear, abrasion and colour loss caused by wet or dry rubbing. Its compact dual-track design and stepper motor guarantee a linear reciprocating motion at a constant and precisely controlled speed, ensuring comparable and reproducible results.

The Scrubtek model covers a wide range of international standards (ASTM, ISO, DIN, EN) through the use of accessories specific to each standard, and its integrated metering pump allows the supply of the abrasive or cleaning agent to be automated during the test.

Application

  • Decorative and interior paints: assessment of washability and scrub resistance in accordance with ISO 11998 and EN 13300.
  • Industrial and protective coatings: testing of wet and dry abrasion resistance in accordance with ASTM D2486, D4213 and D4828.
  • Automotive: scratch resistance tests in accordance with Renault D431010 and GME 60269 specifications.
  • Textile and carpet industry: determination of rub fastness (ISO 105-X12).
  • Road signage and retroreflective materials: wear resistance in accordance with EN 13523-11.
  • Coatings R&D: development and validation of new formulations, colour bases and application systems.

Features

  • Two independent test tracks allowing two samples or conditions to be compared simultaneously.
  • Stepper motor for precise and constant control of travel speed (20–60 cycles/min).
  • Programmable travel of up to 300 mm with a digital cycle counter.
  • Integrated metering pump (0.0–3.0 ml/min) for automated delivery of abrasive agent or detergent.
  • 480 × 272-pixel TFT display with a multilingual menu (Spanish and English) and 5 intuitive navigation keys.
  • Compact design (600 × 285 × 190 mm) that minimises the space required in the laboratory.
  • Compliant with ASTM, ISO, DIN and EN standards through specific interchangeable accessories.

Standards

ISO 11998
EN 13300
DIN 53778
ASTM D2486
ASTM D4213
ASTM D4828
ASTM D3450 / F1319
ISO 105-X12
EN 13523-11
Renault D431010 / GME 60269
ECCA T11 / EN 60730-1

References

Code

Description

NK-WT2300

SCRUBTEK Washability and Abrasion Testing Equipment – 2-lane with dosing pump

Accessories

Code

Description

NK-WT2300-1

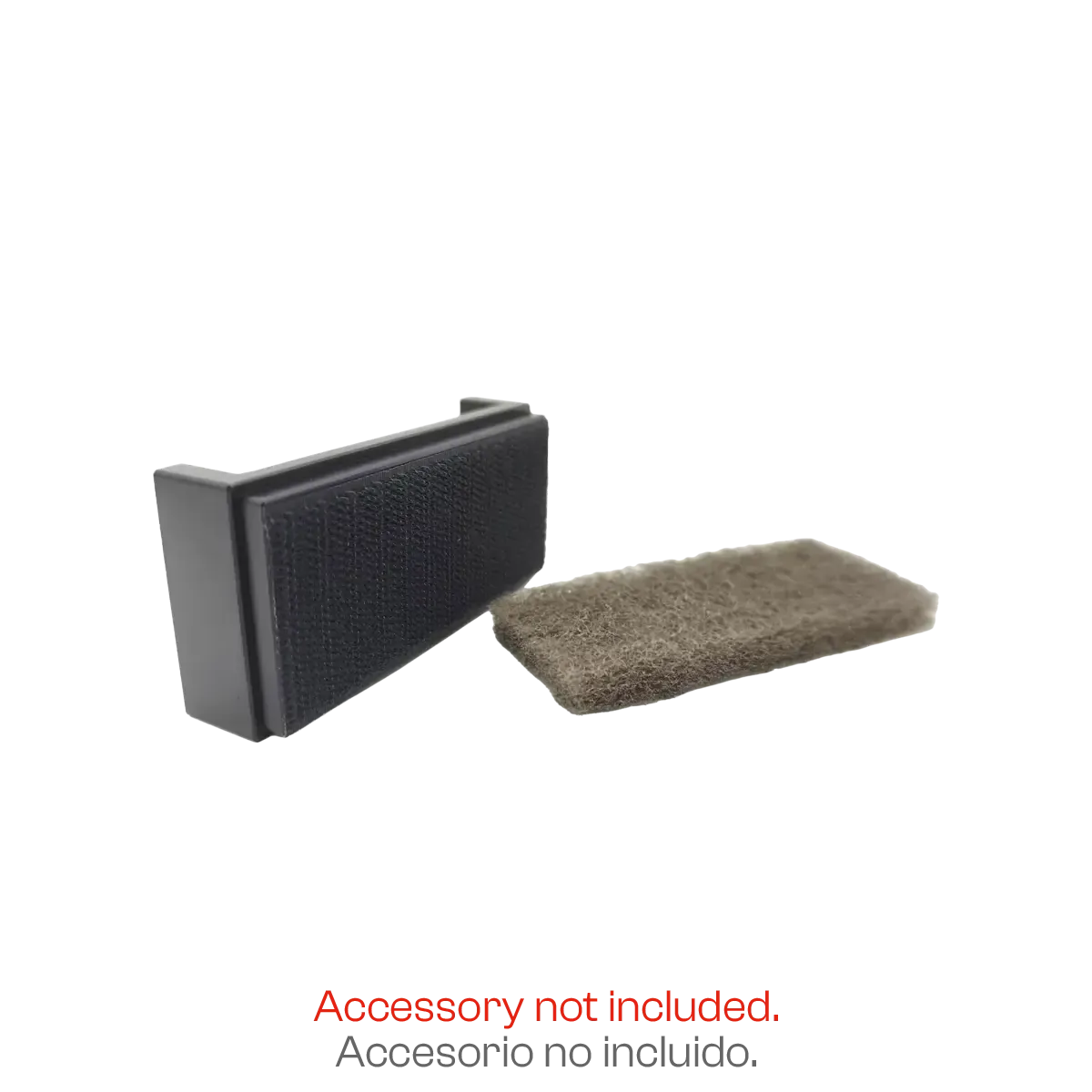

Brush and scouring pad set in accordance with ISO 11998

NK-WT2300-2

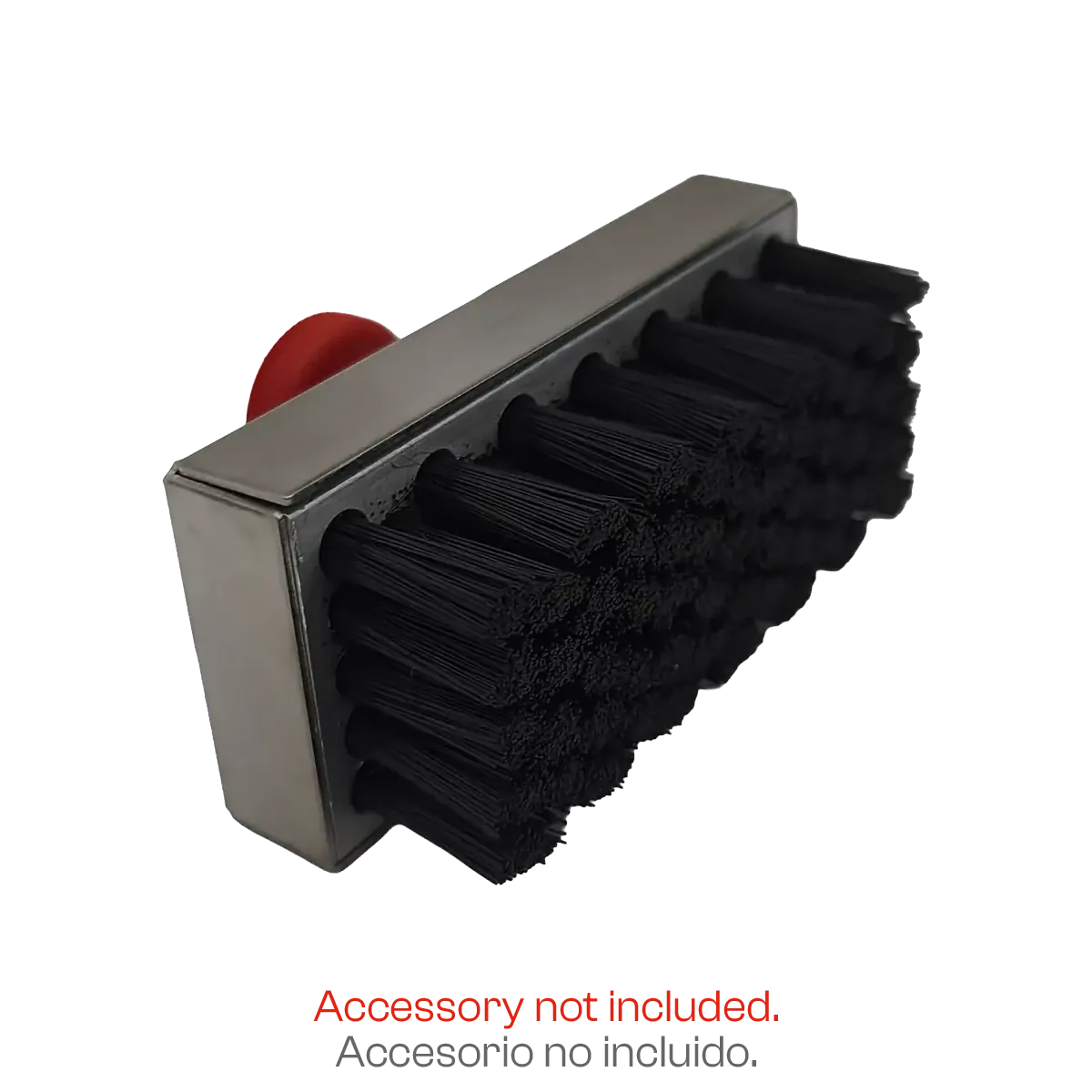

Nylon brush with bristles made of assembly in accordance with ASTM D2486

NK-WT2300-3

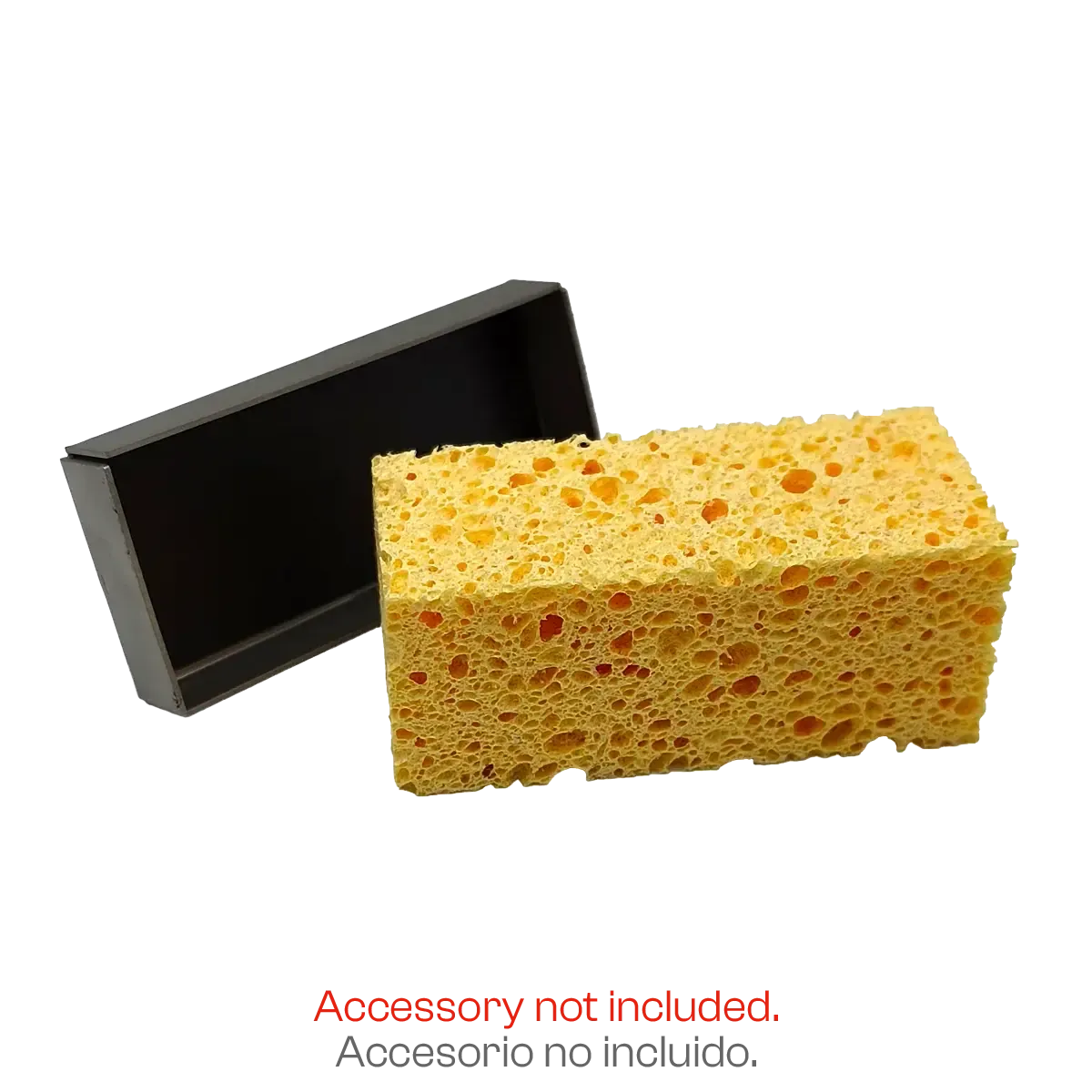

Brush assembly with sponge in accordance with ASTM D4213 / D4828

NK-WT2300-4

Natural bristle brush assembly in accordance with DIN 53778

0226061

SC-2 aqueous dispersion (430 cc) for ASTM D2486, D4213 and D3450

0301002-100

Leneta plastic test tubes, 100 pcs, 165x432mm. P121-10N

0301003

Leneta plastic test tubes, 100 pcs, 165x432mm. P131-10N

NK-WT2300-11

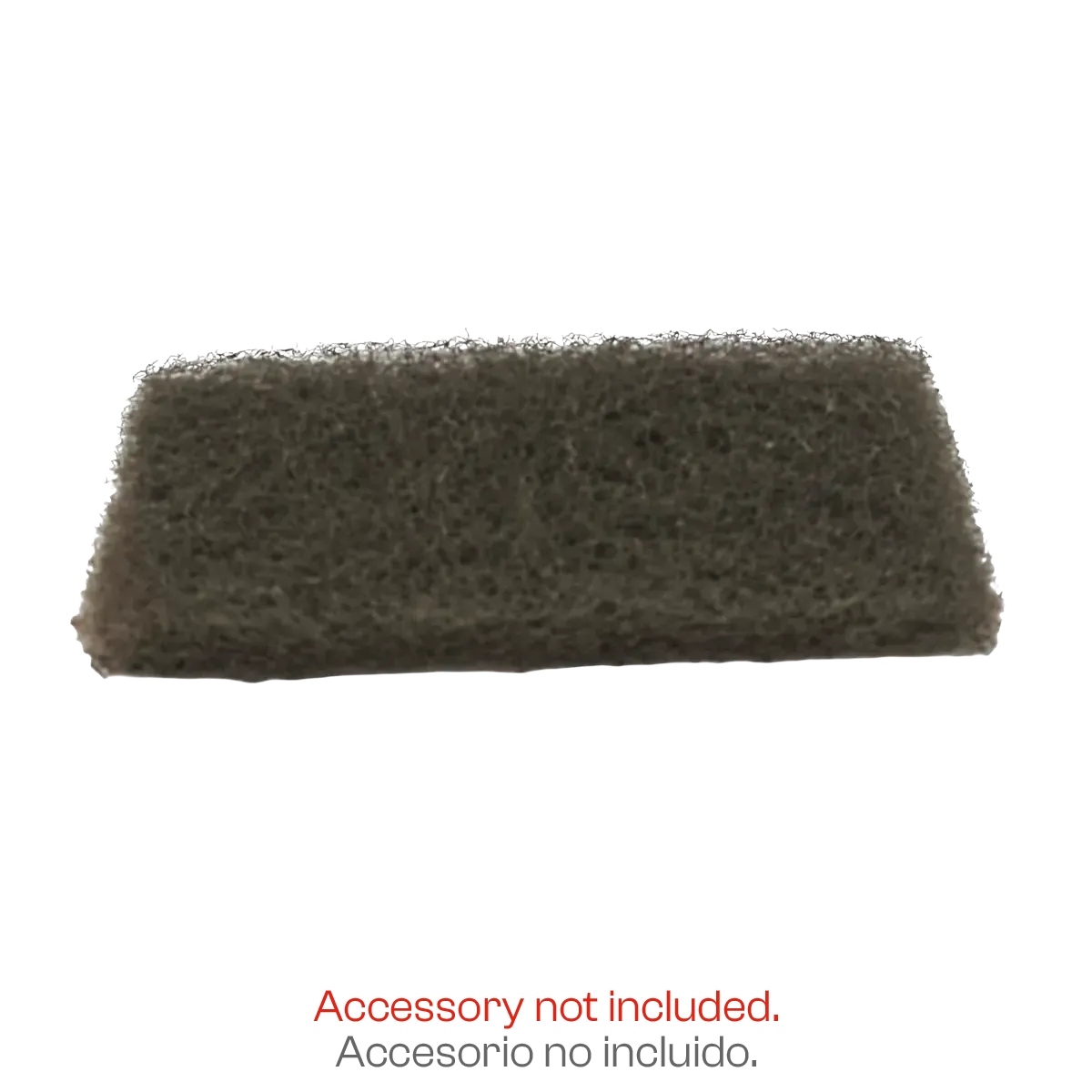

Pack of 5 replacement scouring pads in accordance with ISO 11998

NK-WT2300-11-50

Pack of 50 replacement scouring pads in accordance with ISO 11998

NK-WT2300-21

Replacement nylon bristle brush in accordance with ASTM D2486

NK-WT2300-31

Pack of 5 replacement sponges in accordance with ASTM D4213 / D4828

NK-WT2300-41

Boar bristle brush in accordance with DIN 53778

NK-WT2300-5

Pack of 4 transparent polyurethane tubes for dosing pump

Standards

ISO 11998
EN 13300
DIN 53778
ASTM D2486
ASTM D4213
ASTM D4828
ASTM D3450 / F1319
ISO 105-X12
EN 13523-11
Renault D431010 / GME 60269
ECCA T11 / EN 60730-1

Become an NK distributor in your region

FAQS

The test assesses a coating’s resistance to wear caused by cleaning, scrubbing or repeated rubbing. It is an essential test for determining the durability of decorative and industrial paints subjected to frequent use.

Multi-standard equipment allows test conditions to be adapted to different international standards, facilitating the comparison of results across markets, technical specifications and customer requirements.

Automation improves repeatability, eliminates inter-operator variability and allows consistent test conditions to be applied over hundreds or thousands of cycles.

It depends on the formulation and the type of coating. Some paints may show deterioration after a few hundred cycles, whilst high-resistance systems can withstand several thousand cycles whilst maintaining their surface properties.
